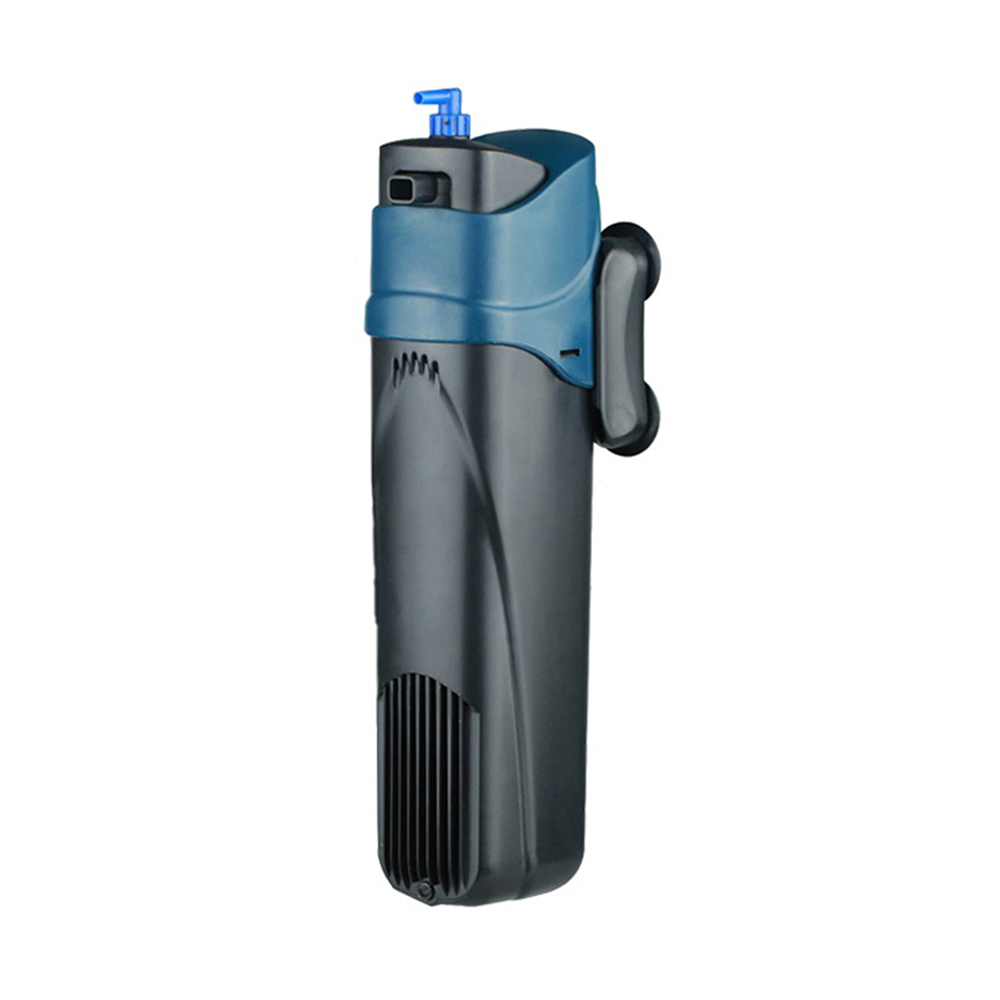

Sunsun JUP-02
Integrated 5W UV-C sterilizer and internal filter
Mechanical sponge filtration for debris removal
Adjustable water outlet direction
Venturi aeration system for improved oxygenation
Quartz sleeve protected UV lamp chamber

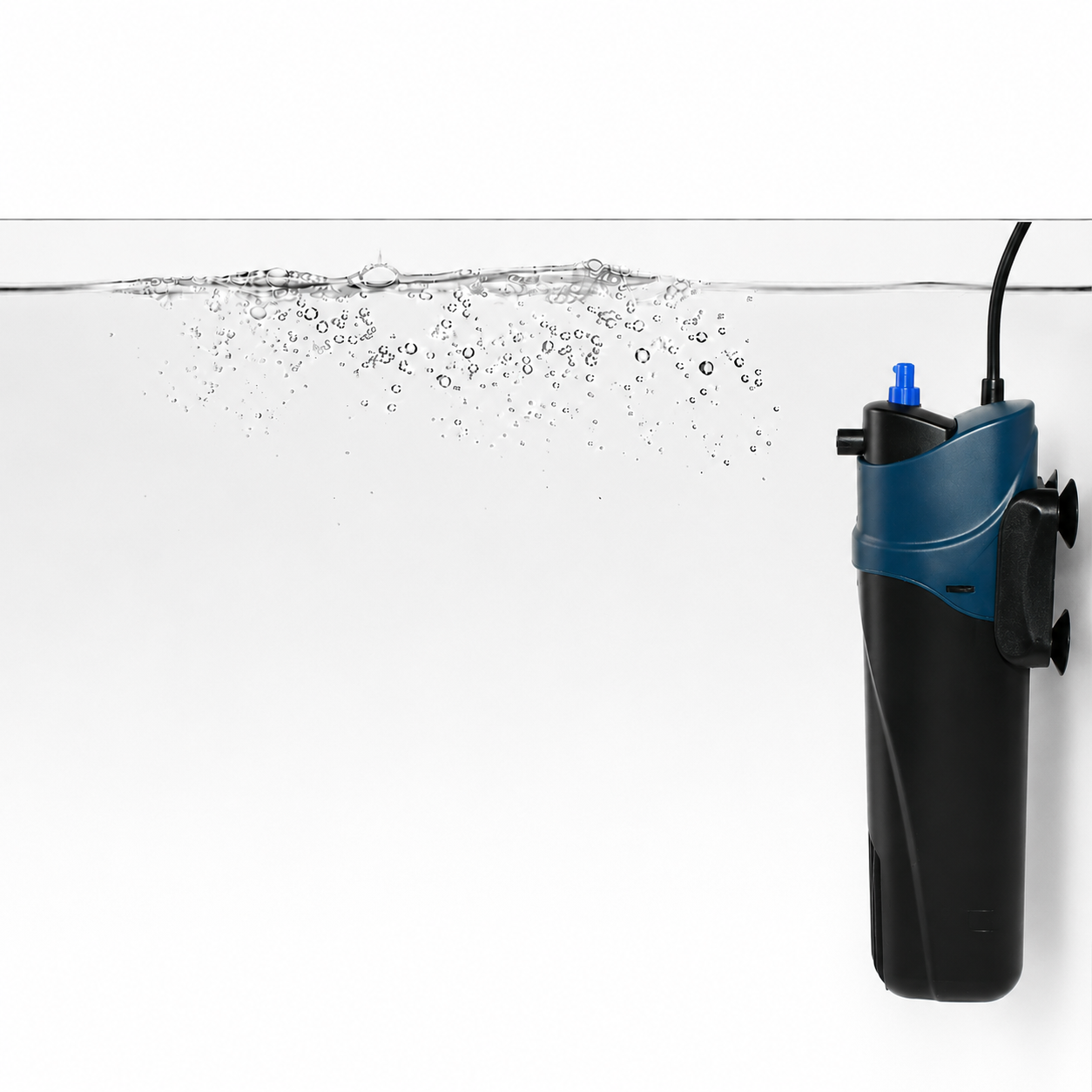

Compact internal design with strong suction cup mounting
Easy-access sponge and lamp replacement system
Suitable for freshwater and tropical aquariums
£ 29.99 (incl. VAT)
- EUR: 34.89€
Overview
SunSun JUP-02 UV Internal Filter is a compact all-in-one internal filtration system that combines mechanical filtration, water circulation, aeration, and ultraviolet sterilization within a single space-saving unit. Designed for freshwater and tropical aquariums, the JUP-02 helps maintain clearer water by removing suspended debris while simultaneously exposing circulating water to UV sterilization, helping to reduce free-floating algae spores, bacterial blooms, and water cloudiness.
The integrated 5W UV-C sterilization chamber operates within a protective quartz sleeve, allowing water to pass through the sterilization zone before being returned to the aquarium. Combined with its mechanical sponge filtration stage, the filter provides continuous filtration and water polishing while maintaining a compact footprint inside the aquarium.
An adjustable outlet allows the flow direction to be modified according to aquarium layout, while the integrated venturi air intake can introduce additional oxygen into the water column when required. Strong suction cups ensure secure mounting to aquarium glass, and the modular design allows easy access to both the filter sponge and UV lamp for routine maintenance.
Suitable for small to medium aquariums, the SunSun JUP-02 is particularly useful for fish-only setups, quarantine tanks, breeding tanks, and aquariums where additional water clarification and sterilization are desired without installing external equipment.

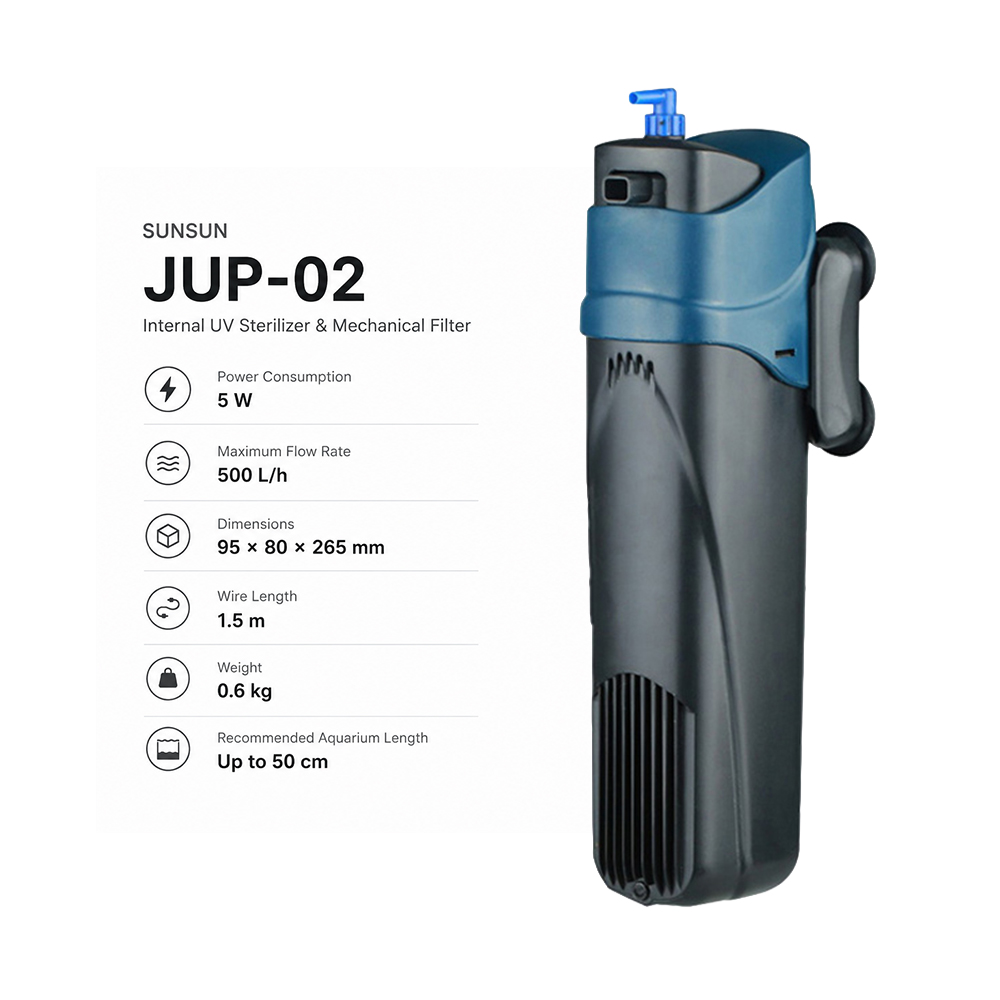

Technical Specifications

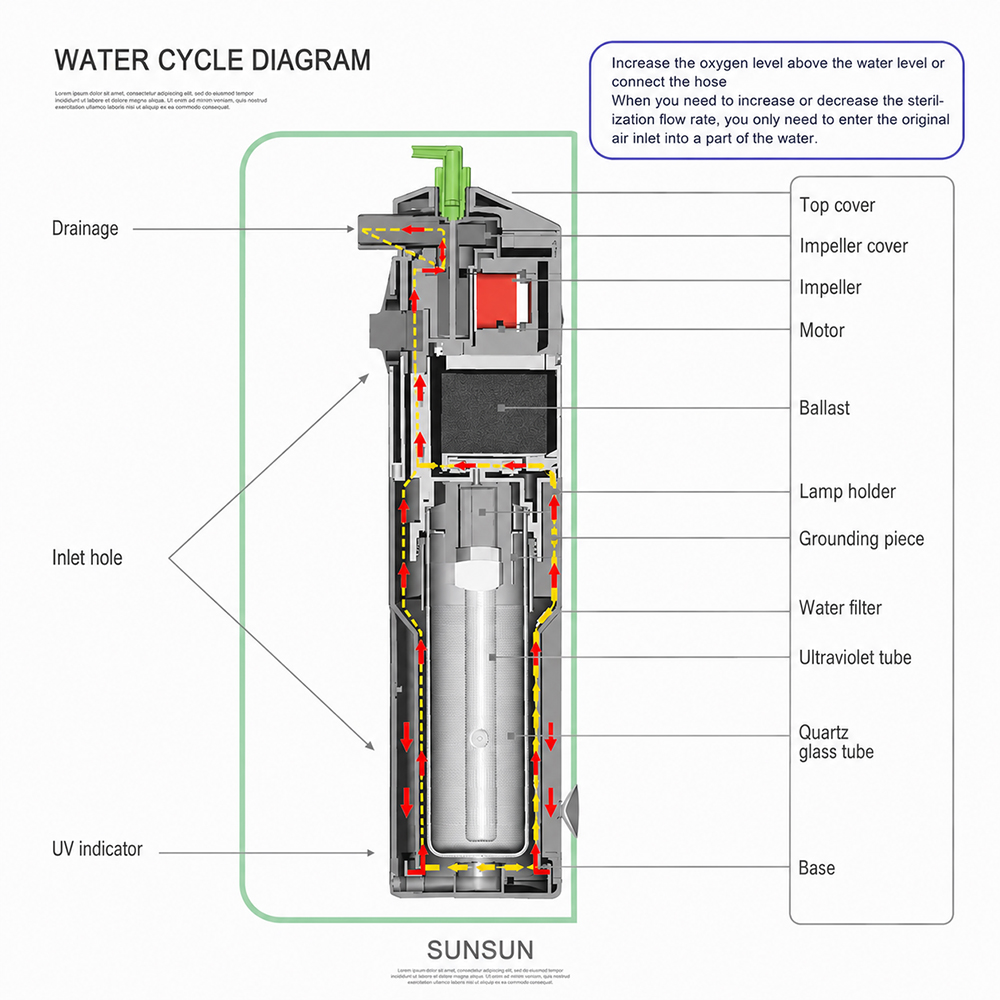

Water Cycle Diagram
Water enters the lower intake section where larger particles and suspended waste are trapped by the mechanical filter sponge. The filtered water then passes through the internal UV sterilization chamber containing the 5W UV-C lamp housed within a protective quartz glass sleeve. Exposure to ultraviolet light helps reduce free-floating microorganisms and algae spores before the water is returned to the aquarium through the adjustable outlet.
The integrated venturi system can also draw air into the water stream, increasing surface agitation and promoting oxygen exchange when additional aeration is required.

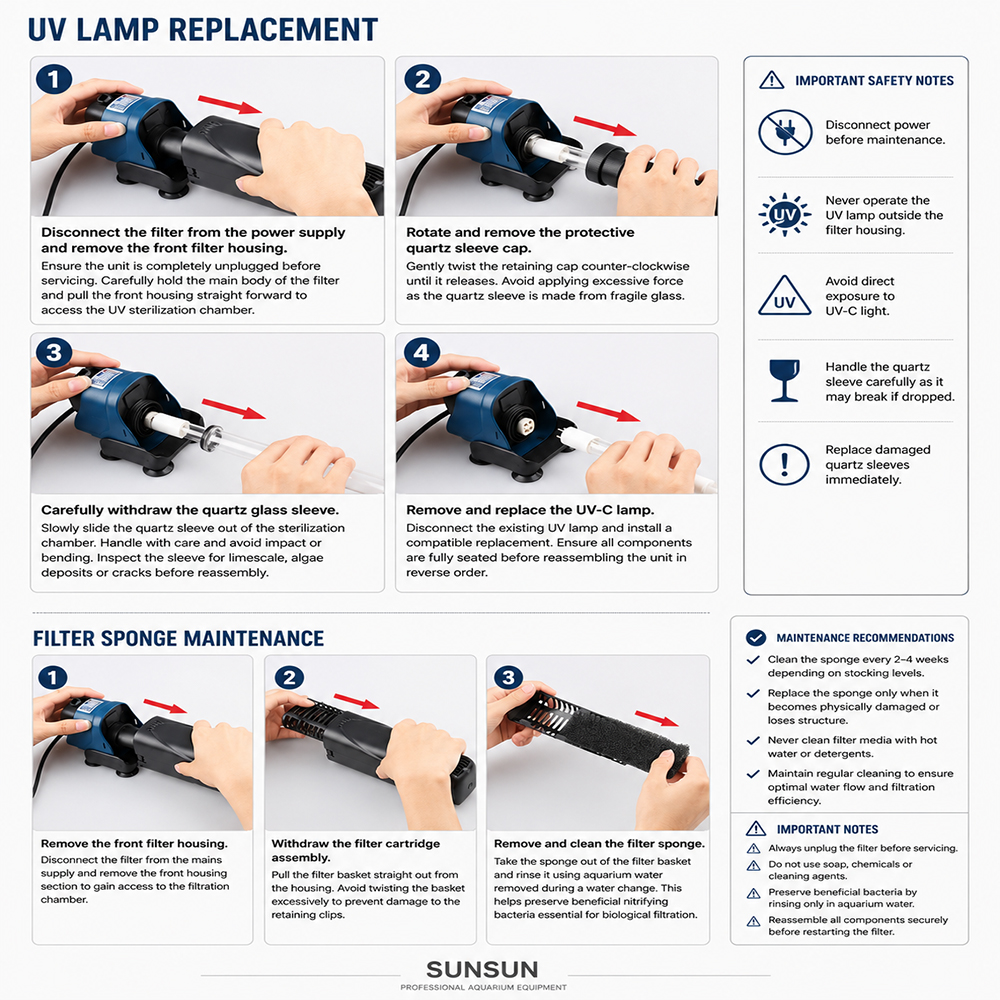

UV Lamp Replacement
Step 1 — Disconnect the filter from the power supply and remove the front filter housing.
Ensure the unit is completely unplugged before servicing. Carefully hold the main body of the filter and pull the front housing straight forward to access the UV sterilization chamber.
Step 2 — Rotate and remove the protective quartz sleeve cap.
Gently twist the retaining cap counter-clockwise until it releases. Avoid applying excessive force as the quartz sleeve is made from fragile glass.
Step 3 — Carefully withdraw the quartz glass sleeve.
Slowly slide the quartz sleeve out of the sterilization chamber. Handle with care and avoid impact or bending. Inspect the sleeve for limescale, algae deposits or cracks before reassembly.
Step 4 — Remove and replace the UV-C lamp.
Disconnect the existing UV lamp and install a compatible replacement. Ensure all components are fully seated before reassembling the unit in reverse order.
Important Safety Notes
- Disconnect power before maintenance.
- Never operate the UV lamp outside the filter housing.
- Avoid direct exposure to UV-C light.
- Handle the quartz sleeve carefully as it may break if dropped.
- Replace damaged quartz sleeves immediately.
Step 1 — Remove the front filter housing.
Disconnect the filter from the mains supply and remove the front housing section to gain access to the filtration chamber.
Step 2 — Withdraw the filter cartridge assembly.
Pull the filter basket straight out from the housing. Avoid twisting the basket excessively to prevent damage to the retaining clips.
Step 3 — Remove and clean the filter sponge.
Take the sponge out of the filter basket and rinse it using aquarium water removed during a water change. This helps preserve beneficial nitrifying bacteria essential for biological filtration.
Maintenance Recommendations
- Clean the sponge every 2–4 weeks depending on stocking levels.
- Replace the sponge only when it becomes physically damaged or loses structure.
- Never clean filter media with hot water or detergents.
- Maintain regular cleaning to ensure optimal water flow and filtration efficiency.
Important Notes
- Always unplug the filter before servicing.
- Do not use soap, chemicals or cleaning agents.
- Preserve beneficial bacteria by rinsing only in aquarium water.
- Reassemble all components securely before restarting the filter.
FAQ
Does the UV sterilizer kill algae?
The UV lamp helps control free-floating algae spores that cause green water, but it will not remove algae already attached to glass, decorations, plants, or hardscape.
Can the UV light harm fish?
No. The UV lamp is enclosed inside the filter housing and quartz sleeve, preventing direct exposure to aquarium inhabitants when used correctly.
Is the filter suitable for planted aquariums?
Yes. The JUP-02 can be used in planted aquariums, although continuous UV use may slightly reduce the effectiveness of certain liquid bacterial supplements when dosed directly into the aquarium.
How often should the sponge be cleaned?
Cleaning frequency depends on stocking levels and feeding habits, but most aquariums benefit from rinsing the sponge every 2–4 weeks.
How often should the UV lamp be replaced?
For optimum sterilization performance, UV lamps are typically replaced every 6–12 months depending on operating hours, even if the lamp still appears illuminated.
Can the flow be adjusted?
The outlet direction can be adjusted to modify circulation patterns within the aquarium and help eliminate dead spots.
Safety
Always disconnect the unit from the power supply before performing maintenance or cleaning. Never operate the filter outside of water. Avoid looking directly at an exposed UV lamp, as ultraviolet radiation may cause eye and skin irritation.
Ensure the quartz sleeve is free from cracks before use and replace damaged components immediately. Keep electrical connections dry and use a drip loop on the power cord to prevent water from reaching the socket. The unit is intended for aquarium use only and should be kept out of reach of children.
