CO₂
SUNSUN-YBF 500
High-performance motor with low energy consumption
Multi-stage filtration for clear, healthy water
Compact design fits easily inside the aquarium
Adjustable water flow for different tank needs
Quiet operation for a stress-free environment
£ 59.99 (incl. VAT)
- EUR: 69.80€
Overview

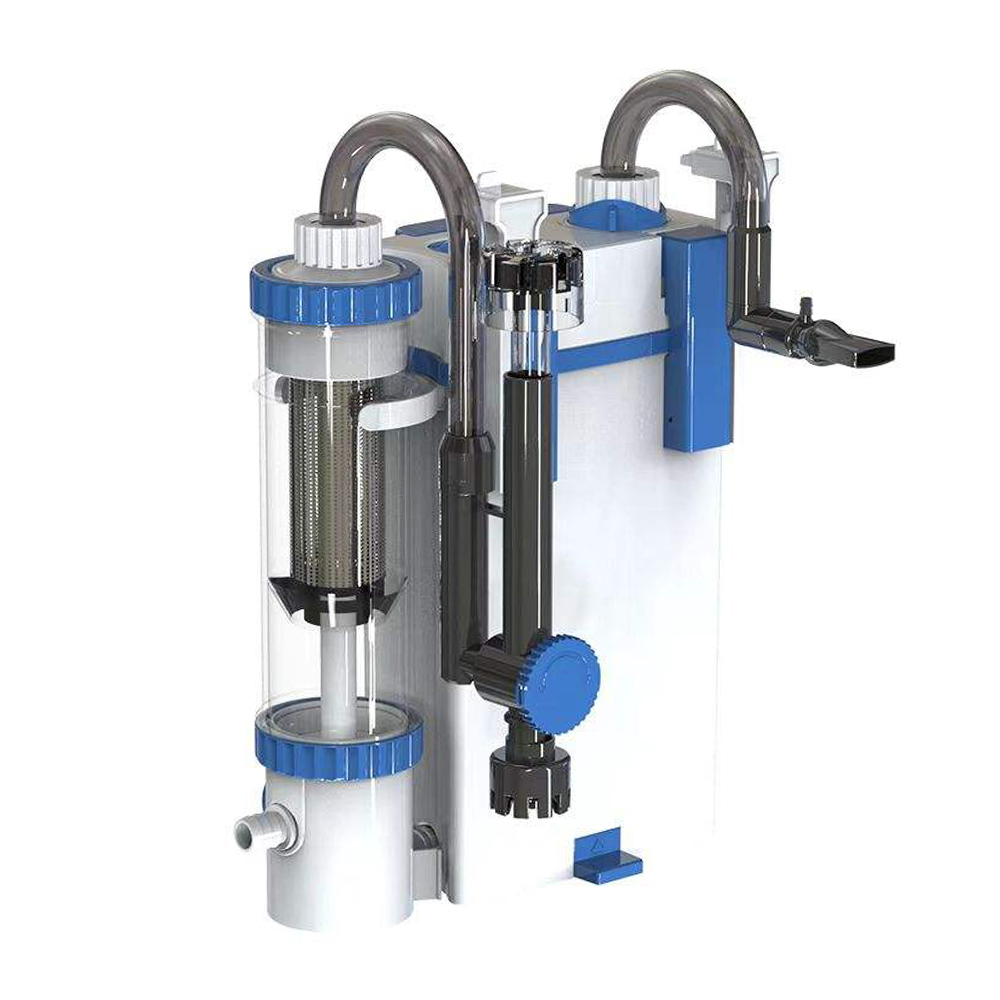

SunSun YBF-500 is an advanced hang-on-back filtration system that combines the convenience of a traditional external hanging filter with the performance of a compact canister filter. Designed for freshwater aquariums, planted aquascapes, shrimp aquariums, and community fish tanks, the YBF-500 integrates mechanical, biological, and chemical filtration within a compact external housing while occupying minimal space inside the aquarium.
A key feature of the system is the integrated floating surface skimmer, which continuously removes protein films, oils, and floating debris from the water surface. This improves gas exchange, enhances oxygen availability, and helps maintain crystal-clear water conditions. The adjustable intake assembly simultaneously draws water from both the aquarium surface and lower water column, ensuring complete circulation throughout the aquarium.
The YBF-500 also incorporates a stainless-steel pre-filtration chamber and a dedicated waste separation system that helps trap heavier debris before it reaches the primary filter media. This design reduces maintenance frequency while improving biological filtration stability. Combined with multiple media baskets, adjustable flow control, and a convenient bottom discharge valve, the YBF-500 delivers efficient filtration performance suitable for aquariums up to approximately 120–130 litres.
Indications
SunSun YBF-500 is recommended for freshwater aquariums requiring efficient mechanical filtration, biological filtration, and surface film removal. It is particularly suitable for planted aquariums where maintaining a clean water surface improves light penetration and gas exchange. The integrated surface skimmer helps eliminate oily films commonly produced by fish foods, plant fertilisers, and organic waste accumulation.
The large biological media capacity supports stable nitrifying bacteria populations, helping maintain healthy ammonia and nitrite processing. The adjustable flow system allows the filter to be adapted for community fish aquariums, shrimp aquariums, breeding tanks, and planted aquascapes where different circulation requirements may be desired.
Filter media is not includedDirections

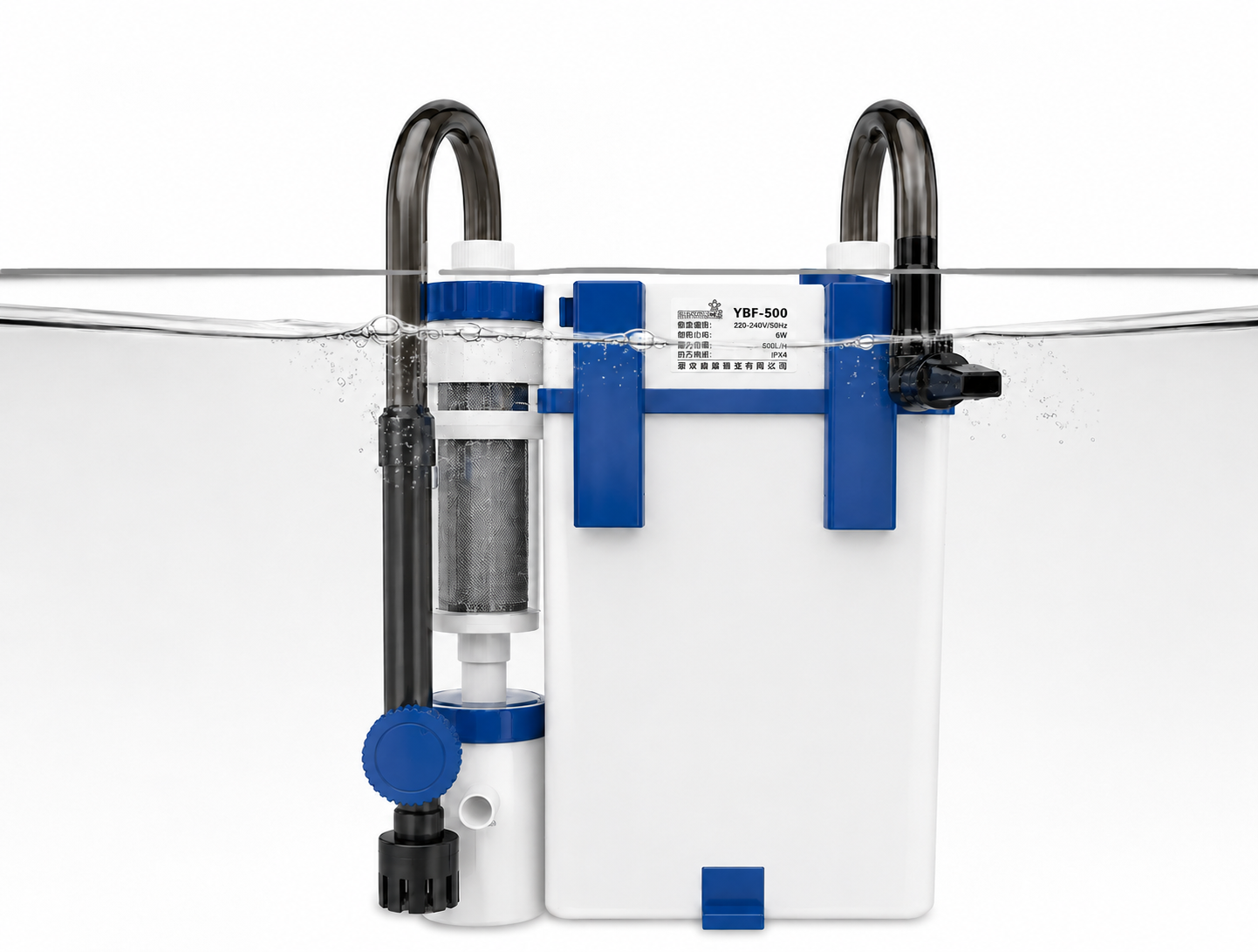

Install the filter securely on the aquarium glass using the supplied mounting bracket. Adjust the telescopic intake assembly to the desired height and attach the floating skimmer assembly. Fill the filter body completely with aquarium water through the water filling port before connecting power. Once primed, switch on the unit and adjust the flow rate as required.

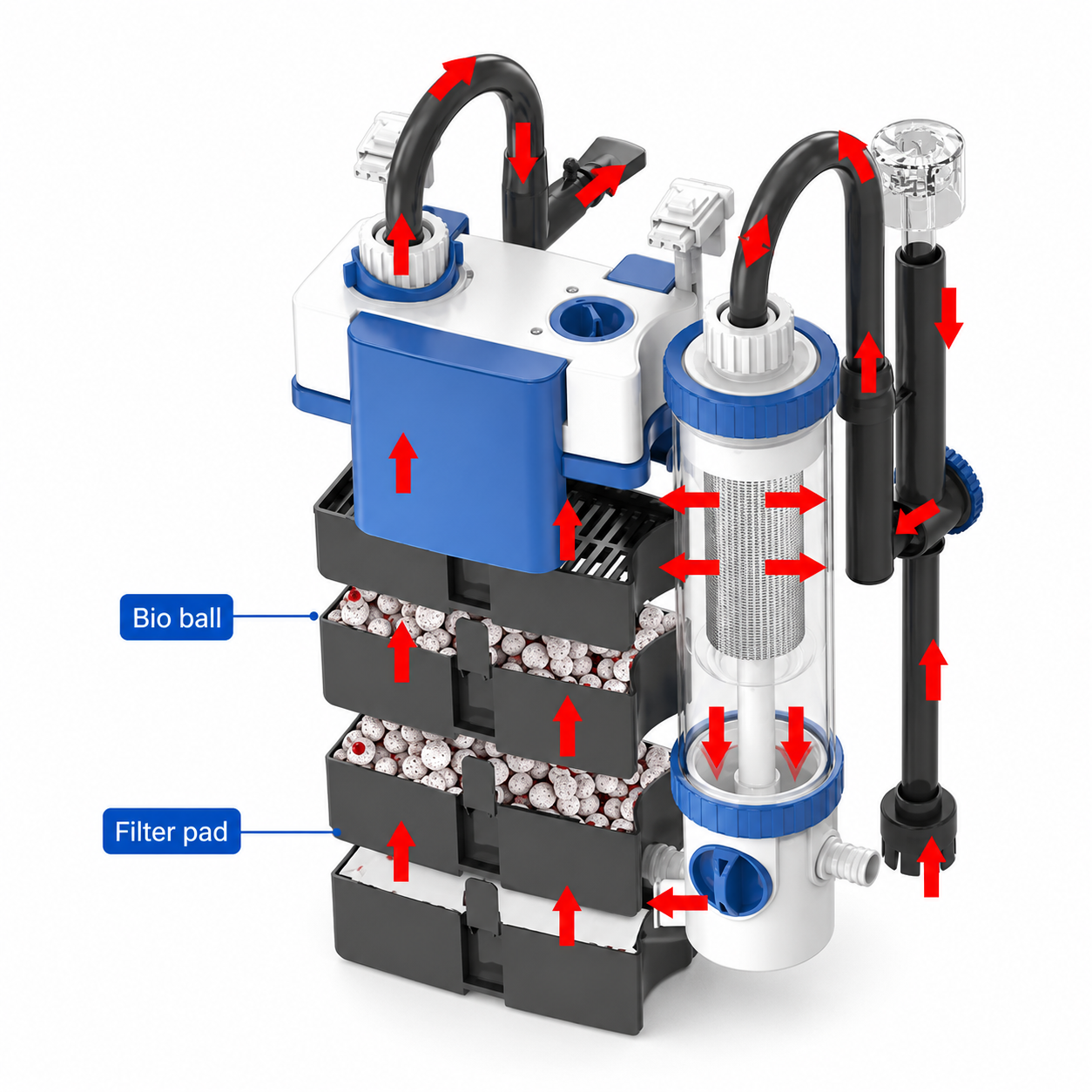

Arrange filtration media from coarse mechanical filtration through to biological and chemical media. The supplied filter pads should be rinsed periodically using aquarium water to preserve beneficial bacterial colonies. Biological media should only be cleaned when necessary and should never be completely replaced at the same time.
The integrated waste discharge system may be opened periodically to remove accumulated debris from the collection chamber without dismantling the entire filter. Regular cleaning of the floating skimmer and intake components will ensure optimal flow and surface cleaning performance.

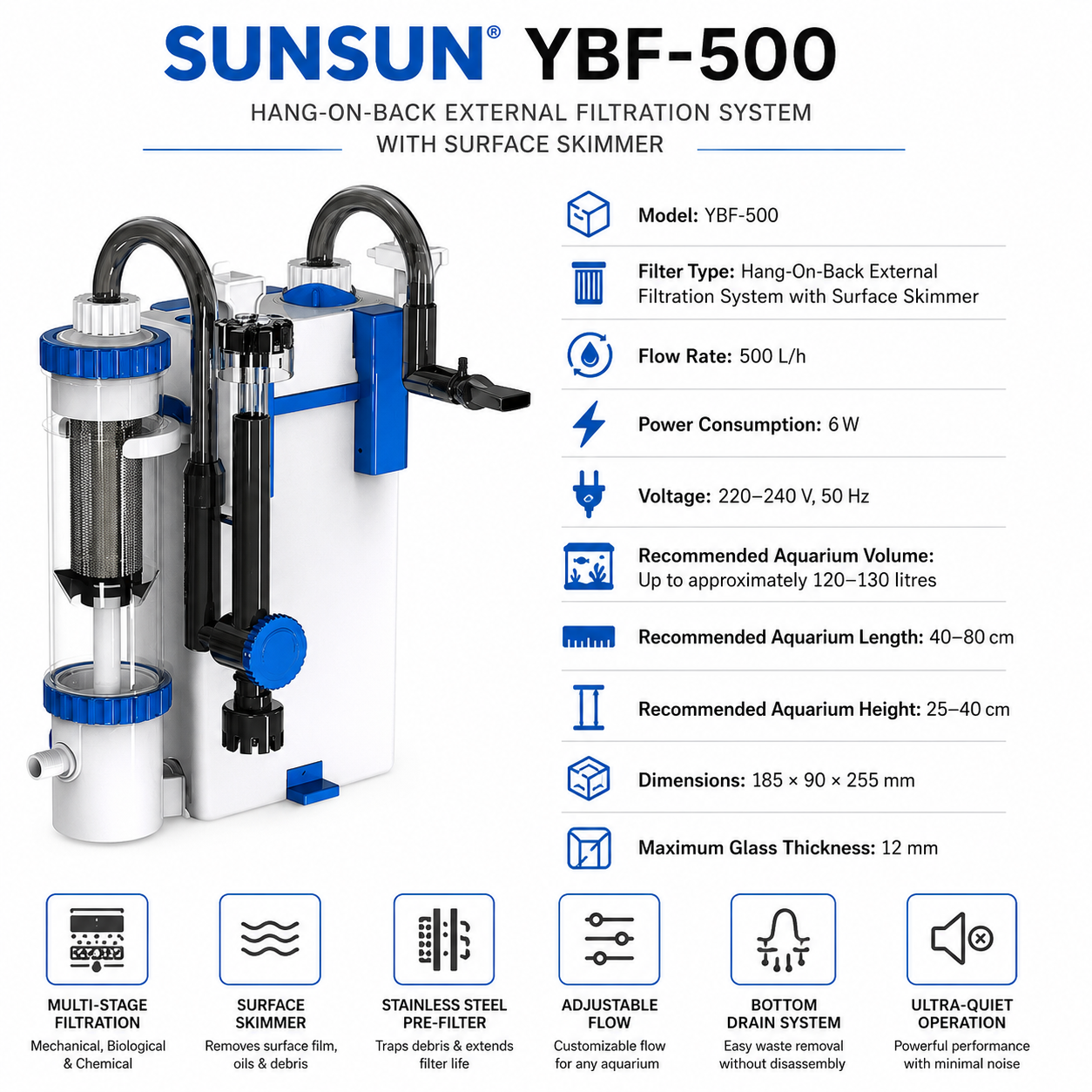

Technical Specifications
FAQ
How does the floating skimmer work?
The floating intake automatically adjusts to changing water levels while continuously removing surface biofilm, oils, dust, and floating organic matter from the aquarium surface.
Can the filter be used on planted aquariums?
Yes. The YBF-500 is particularly suitable for planted aquariums due to its large biological filtration capacity, adjustable flow rate, and efficient surface film removal system.
What filter media can be used?
The filter can accommodate a wide variety of filtration materials including sponges, filter wool, ceramic rings, biological media, activated carbon, phosphate removers, and specialised filtration resins.
How often should the filter be cleaned?
Mechanical media should be inspected regularly and cleaned as required. The waste separation chamber can be drained periodically using the integrated discharge valve without disassembling the filter.
Is the YBF-500 suitable for shrimp aquariums?
Yes. The adjustable flow system allows operation at lower flow rates suitable for shrimp aquariums. Additional intake protection may be used for juvenile shrimp if required.
What is the advantage of the waste discharge chamber?
The dedicated waste chamber collects heavier debris before it reaches the main biological media. This reduces maintenance frequency and helps preserve beneficial bacterial colonies.
Safety
Always disconnect the filter from the electrical supply before performing maintenance or cleaning. Ensure the filter is properly primed with water before operation. Do not operate the unit dry. Inspect power cables regularly and replace the unit if any electrical components become damaged.
Keep the water level within the recommended operating range to ensure proper skimmer performance. Clean intake and outlet assemblies regularly to prevent flow restrictions. Use only aquarium-safe filtration media and replacement parts. This product is intended for freshwater aquarium use only.
